Introduction

Filter is a circuit which is used to filter the signals so that it will pass only required signals and avoid unwanted signals. Generally filters are designed by either passive components or active components.

Passive components are resistors, inductors and capacitors.

Active components are transistors, FETs and Op-amps.

Low Pass Filter is a filter which will pass only low frequency signals and attenuate high frequency signals. It allows signals only from 0Hz to cut off frequency ‘fc’. This cut off frequency value will depend on the value of the components used in the circuit. Generally the cut off frequency of these filters are preferably below 100 kHz. The cut off frequency is also called break frequency or turn over frequency.

Passive Low Pass Filter

The Low Pass Filter circuit which is designed by passive components is a passive low pass filter.

The RC Low Pass Filter is shown below

Simply by connecting resistor ‘R’ in series with a capacitor ‘C’ gives  the RC Low Pass Filter. The  resistor is independent to the variations of the applied frequencies in the circuit but the capacitor is a sensitive component which means that it will  respond to the changes in the circuit.

Since it has only one reactive component this circuit can also termed as ‘one pole filter’ or ‘First order filter’. The input voltage ‘Vin’ is applied to whole series loop and the output voltage is taken only across the capacitor.

Since capacitor is a sensitive component the main concentration to be observed is about “capacitive reactance”.  Capacitive reactance is the opposition response created due to the capacitor in the circuit.

In order to maintain the capacitance of the capacitor, the capacitor will oppose a small amount of current flow in the circuit. This opposition to the current flow in the circuit is called impedance. Thus the capacitive reactance decreases with increase of opposing current.

By this we can say that the capacitive reactance is inversely proportional to the frequency applied to the circuit. The resistive value of the resistor is stable whereas the capacitive reactance value varies. The above circuit can acts as a ‘frequency variable voltage divider’ circuit.

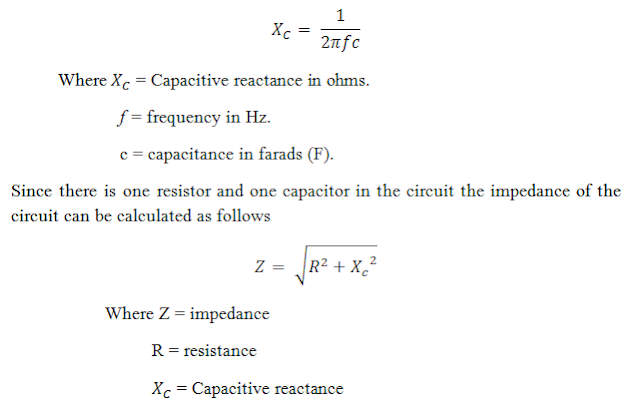

The capacitive reactance can be formulated as follows:

Output voltage calculation

In order to get the potential divider equation we have to consider impedance, capacitive reactance, input voltage and output voltage. By using these terms we can formulate the equation for RC potential divider equation as follows

By using this equation we can calculate the value of the output at any applied frequency.

Frequency Response of Low pass filter

From the introduction to filters we already saw that the magnitude |H(jω)| of the filter is taken as the gain of the circuit. This gain is measured as  20 log (Vout / Vin) and for any RC circuit the angle of the slope ‘roll-off ‘ is at -20 dB/ decade.

The band of frequencies below the cut off region is referred to  as ‘Pass Band’ and the band of frequencies after the cut off frequency are referred to as ‘Stop Band’. From the plot it can be observed that the pass band is the bandwidth of the filter.

From this plot it is clear that until cut off frequency the gain is constant because the output voltage is proportional to the frequency value at the low frequencies. This is due to the capacitive reactance which acts like open circuit at low frequencies and allows maximum current through the circuit for high frequencies. The value of the capacitive reactance is very high at low frequencies thus it has greater ability to block the current flow through the circuit.

Once it reaches the cut off frequency value, the output voltage decreases gradually and reaches  zero. The gain also decreases along with the output voltage. After the cut off frequency, the response of the circuit slope will have a  roll-off point of -20 dB/ decade.

This is mainly due to the increase of the frequency. When frequency increases the capacitive reactance value decreases and thus the ability to block the current through the capacitor decreases.The circuit acts as a short circuit. Thus the output voltage of the filter is zero at high frequencies.

The only way to avoid this problem is to choose the frequency ranges up to which these resistor and capacitor can withstand. The values of the capacitor and the resistor play a major role because the cut off frequency ‘fc’ will depend on these values. If the frequency ranges are within the cut off frequency range then we can overcome the short circuit problem.

This cut off point will occurs when the resistance value and the capacitive reactance value coincides which means the vector sum of the resistance and reactive capacitance are equal. That is when R = Xc and at this situation the input signal is attenuated by -3dB/decade.

This attenuation is approximately 70.7 % of input signal.The time taken to charge and discharge  the plates of the capacitor varies according to the sine wave. Due to this, the phase angle (ø) of the output signal lags behind the input signal after cut-off frequency.At cut-off frequency the output signal is -45° out of phase.

If the input frequency of the filter increases the lagging angle of the circuit output signal increases. Simply for the higher frequency value, the circuit is more out of phase.

The capacitor has more time to charge and discharge the plates at low frequencies because the switching time of the sine wave is more. But with the increase of frequency the time taken to switch to the next pulse gradually decreases. Due to this, the time variations occurs which leads to phase shift of the output wave.

Cut-off frequency of a passive low pass filter mainly depends on the resistor and capacitor values used in the filter  circuit.This cut-off frequency is inversely proportional to both resistor and capacitor values. The cut-off frequency of a passive low pass filter is given as

fC = 1/(2πRC)

The phase shift of a passive low pass filter is given as

Phase shift (ø) = – tan-1 (2πfRc)

Time Constant (τ)

As we already seen that the time taken by the capacitor for charging and discharging of the plates with respect to the input sinusoidal wave results in the phase difference. The resistor and the capacitor in series connection will produce this charging and discharging effect.

The time constant of a series RC circuit is defined as the time taken by the capacitor to charge up to 63.2% of the final steady state value and also it is defined as the time taken by the capacitor   to discharge to 36.8% of steady state value. This Time constant is represented with symbol ‘τ ’.

The relationship between the time constant and the cut off frequency is as follows

Time constant τ = RC = 1/ 2πfc and ωc = 1/τ = 1/RC

By this we can say that the output of the filter depends on the frequencies applied at the input and on the time constant.

Second order Passive low pass filter

Till now we have studied first order low pass filter which is made by connecting a resistor and capacitor in series. However sometimes a single stage may not enough to remove all unwanted frequencies then second order filter are used as shown below.

The second order low pass RC filter can be obtained simply by adding one more stage to the first order low pass filter. This filter gives a slope of -40dB/decade or -12dB/octave and a fourth order filter gives a slope of -80dB/octave and so on.

Passive low pass filter Gain at cut-off frequency is given as

A = (1/√2)n

Where n is the order or number of stages

The cut-off frequency of second order low pass filter is given as

fc = 1/ (2π√(R1C1R2C2))

Second order low pass filter -3dB frequency is given as

f (-3dB) = fc √ (2(1/n) – 1)

Where fc  is cut-off frequency and n is the number of stages and ƒ-3dB is -3dB pass band frequency.

Low Pass Filter Summary

Low Pass Filter is made up of a resistor and capacitor. Not only capacitor but any reactive component with resistor gives low pass filter. It is a filter which allows only low frequencies and attenuates high frequencies. The frequencies below the cut off frequency are  pass band frequencies and the frequencies greater than the cut off frequency are stop band frequencies. Pass band is the bandwidth of the filter.

Cut off frequency of the filter will depends on the values of the components chosen for the circuit design. Cut off frequency can be calculated by using the below formula.

fC = 1/(2πRC)

The gain of the filter is taken as magnitude of the filter and the gain can be calculated by using the formula 20 log (Vout / Vin). The output of the filter is constant till the frequency levels reaches cut off frequency.

At cut-off frequency the output signal is 70.7% of the input signal and after the cut-off frequency output gradually decreases to zero.  The phase angle of the output signal lags the input signal after cut-off frequency. At cut-off frequency the output signal phase shift is 45°.

If we interchange the positions of the resistor and the capacitor in low pass filter circuit then the circuit behaves like high pass filter.

For sinusoidal input waves the circuit behaves like a first order low pass filter but when the input signal type changes then what happens to the output of the filter has to be observed.

When we change the input signal type to either switch mode (ON/OFF) or  square wave the circuit behaves like an integrator which is discussed as follows.

Low pass filter as wave shaping circuit

The above figure shows the performance of the filter for a square input. When the input of the low pass filter is a square wave then  the output of the filter will be in triangular form. This is because the capacitor cannot acts as an ON or OFF switch. At low frequencies when the input of the filter is square wave then the output will also be a square wave only.

When frequency increases then the output of the filter appears like a triangular wave. Still if we increase the frequency then the amplitude of the output signal decreases. The triangular wave is generated due to the capacitors action or simply charging and discharging pattern of the capacitor leads to triangular wave.

Applications of the Low pass filter

• The main usage of the low pass filter circuits is to avoid A.C. ripples in the rectifier output.
  The low pass filter is used in audio amplifier circuits.
• By using this passive low pass filter we can directly reduce the high frequency noise to a small disturbance mode in the stereo systems.

• Low Pass filter as an integrator can be used as Wave shaping and wave generating circuits because of easy conversion of one type of electrical signal  to another form.
• They are also used at demodulator circuits to extract required parameters from the modulated signals.

Basic Electronics On The Go - Introduction to Filters and Capacitive Reactance

http://www.electronicshub.org/introduction-to-filters-and-capacitive-reactance/

Introduction

Electrical filter is a circuit, designed to reject all unwanted frequency components of an electrical signal and allows only desired frequencies. In other words a filter is a circuit which allows only a certain band of frequencies.The main applications of the filters are at audio equalizers and in sensitive electronic devices whose input signals should be conditional.These filters are mainly categorized into 2 types. They are active filters and passive filters.

Passive Filters

Passive filters do not contain any amplifying elements. Examples of them are resistors, capacitors and inductors (passive elements). These filters will not draw any additional power from the external battery supply. The capacitor will allow the high frequency signals and the inductor will allow low frequency signals. Similarly inductor restricts the flow of high frequency signals and capacitor restricts the lower frequency signals. In these filters, output signal amplitude is always less than the amplitude of the applied input signal. The gain of passive filters is always less than unity.This shows that the gain of the signals  cannot be improved by these passive filters. Due to this, the characteristics of the filters are affected by the load impedances. These filters can work at higher frequency ranges nearly at 500 MHz also.

Active Filters

Active filters contain amplifying elements such as Op-Amps, Transistors and FET’s (active components)in addition to the passive elements (Resistors, Capacitors and Inductors). By using these filters we can overcome the drawbacks of Passive filters. Active filters will depend on external power supply because it will amplify the output signals. Without any inductor element these can achieve the resonant frequency, that is the input impedance and output impedances are nullified by each other. Inductors are used less in active filters because inductors dissipate some amount of power and generates stray magnetic fields.  Also, due to inductors, the size of the active filter increases.

Some of the advantages of Active filters

• The combination of op-amps, resistors, capacitors, transistors and FETs gives an integrated circuit which in turn reduces the size and weight of the filter.
• The gain of an Op-amp can be easily controlled in the closed loop form. Due to this reason the input signal is not restricted.
• These are applicable in Butterworth filters, Chebyshev and Cauer filters.

The main drawback in active filters is the operational frequency range is less. In many applications the operational frequency range of active filters is maximized to 500 kHz only. The active filters must require D.C power supply. When compared with the passive filters these active filters are more sensitive. The outputs can also be disturbed  by  environmental changes.

The filter is a sensitive circuit and in which the output components are only frequency terms. To analyze the filter circuit the frequency domain representation is the best one. This representation is as shown below.

The magnitude of the filter M is called as the gain of the filter. Magnitude is generally represented in dB as 20log (M).

One of the important characteristic of the filters is cut-off frequency. It is defined as the frequency which separates both pass band and stop band in frequency response. Pass band is the range of frequencies that are allowed by the filter without any attenuation. Stop band is defined as the band of frequencies that are not allowed by the filter.

Filters are classified based on the frequency of signals that they allow through them. There are four types of filters -  they are Low Pass Filters, Band Pass Filters, High Pass Filters and Band Stop Filters. Due to the usage of high speed op-amps and approximate values of the components, the characteristics of ideal and practical responses are nearly equal.

Low Pass Filter

Low Pass Filters will pass the frequency signals less than cut-off frequency ‘fc’. Practically a small range of frequencies will pass even after the cut-off frequency range. The gain of the filter will depend  on the frequency. If the input signal frequency increases then, gain of the filter decreases. At the end of the transition band the gain becomes zero. This is as shown below.

Where dotted line indicates the ideal filter characteristics and continuous line indicates practical filter characteristics.

Applications of low pass filters are in sound system that is in various types of loudspeakers. To block the harmonic emissions these low pass filters are used in radio transmitters. These are also used at DSL splitters in telephone subscriber lines.

High Pass Filter

They will pass the frequencies after the cut off frequency ‘fc’. In practical cases, a  small range of frequencies will pass below the cut off range. This is as shown below.

The combination of high pass filter with low pass filter forms Band pass filter. Applications of the high pass filters are at RF circuits and  are also used in DSL splitters.

Band Pass Filter

The name of the filter itself indicates that it allows only a certain band of frequencies and blocks all the remaining frequencies. The upper and lower limits of the band pass filter depend on the filter design. Practical and ideal characteristics of band pass filter are shown below.

Applications of band pass filters are at transmitter and receiver circuits. These are mainly used to calculate the sensitivity of the receiver circuits and to optimize the signal to noise ratio.

Band Stop Filter

These are also called as Band rejection or band elimination filters. These filters stop only a particular band of frequencies and allow all other frequencies.The frequency limits of the filter depend on the filter design.The dotted line indicates the ideal case where as a continuous line indicates the practical case. It has two pass bands and one stop band.

Applications of band stop filters are at instrument amplifiers.

Ideal filters frequency response

Now let us see the ideal response of different filters. Here fL indicates the lower cut-off frequency and fH indicates the higher cut-off frequency.

Ideal characteristics of Low pass filter

This response shows that the low pass filter will allow the signals up to lower cutoff frequency and stops the frequencies higher than the lower cutoff frequency.

Ideal characteristics of High pass filter

This shows the high pass filter will allow the frequencies greater than the higher cut off frequency and stops the frequencies lesser than the high cut off frequency.

Ideal characteristics of Band pass filter

This response shows that the band pass filter will pass the frequencies between the lower cutoff region and higher cut-off region only. It stops the frequencies which are lesser than the lower cutoff frequency and also stops the frequencies greater than higher cut-off frequencies.

Ideal characteristics of Band stop filter

The above figure shows that the frequencies which are greater than the lower cut off frequency and the frequencies which are lower than the higher cut off frequency are not processed.

Capacitive Reactance

When a resistor is connected in series with a capacitor, an RC circuit is formed. In RC circuits,  the capacitor will charge from the D.C supply voltage and when the supply voltage is decreased,  the capacitor  discharges. Not only at the time of the D.C supply, but also in the case of A.C supply - according to the supply voltage level -  the capacitor will charge and discharge continuously.

But due to internal resistance there will be some attenuation in the flow of the current through the capacitor. This internal resistance is called Capacitive Reactance. ‘X_C’ Indicates the Capacitive Reactance and it is measured in Ohms same as that of the resistance.

When the frequency is varied in the capacitive circuit according to the amount of frequency change, this capacitive reactance value also changes. The electrons flow from one plate to the other plate causes the current flow in the circuit.  When the frequency through the capacitor increases, the capacitive reactance value decreases and when frequency through the capacitor decreases, the capacitive reactance value increases. Thus, by this we can say that the capacitive reactance is inversely proportional to the applied frequency level. This shows that the capacitor connected in the circuit is dependent on supply frequency. This phenomenon is called complex impedance.

Capacitive Reactance Formula

Xc = 1/(2πfc)

Where Xc = Capacitive Reactance

π = 3.142

f = Frequency in Hz

c = Capacitance in Farads (F).

Capacitive Reactance Vs Frequency

From the above frequency verses capacitive reactance plot we can observe that when the frequency is zero, the reactance value reaches to infinity -  this shows the phenomenon of the open circuit. When the value of the frequency increases exponentially, the reactance value decreases. When frequency reaches to infinity, the reactance value is  at nearly zero - this gives us closed circuit behaviour.

Voltage Divider concept

We have already studied the voltage divider concept in resistors topic and we know that the voltage divider circuit is able to produce the output voltage which is a fraction of the input voltage.

By replacing the resistor R2 with a capacitor C in the above circuit the voltage drop across the two components changes with the input frequency because reactance of the capacitor varies with the frequency.Now the output voltage across the capacitor depends on the input frequency. Using this concept we can construct passive low and high pass filters by replacing one of the resistors with a capacitor in a voltage divider circuit.

Capacitor behaviour in Low Pass Filter

For the Low pass filter the resistor R2 is replaced by the capacitor C1. At normal frequency the circuit is as shown in the above figure. When the frequency is zero the reactance value is very high which is nearly equal to infinity. At this condition circuit acts as an open circuit. When frequency is very high the reactance value reaches to zero and the circuit acts as a closed circuit. Both of these behaviours are shown in the above figure.

Capacitor behaviour in High Pass filters

For the High pass filter the resistor R1 is replaced by the capacitor C1. From the above figure it is clear that at normal frequency the circuit acts like a high pass filter circuit. Initially at the zero frequency value the circuit behaves like an open circuit. When frequency increases the reactance will decrease exponentially. At some point the frequency reaches to infinity level thus, it affects the reactance to reach the zero state. These circuit behaviors are shown in the above figures.
